Good Solubility Polyvinyl Butyral PVB Resin For Textile Printing Ink

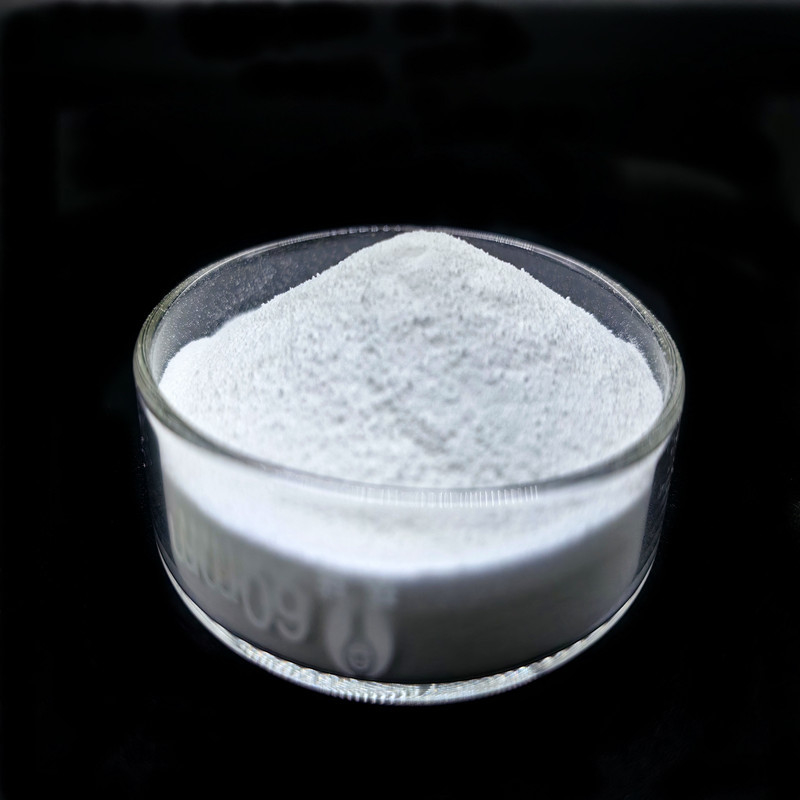

Polyvinyl butyral resin is free flowing white powder,offers good wettability and pigment dispersion.
Appearance: Tiny white powder
SPECIFICATIONS:
| Item | Volatile content | Non volatile content | Butyral content | Acetate content | Hydroxy content | 10% viscosity | Free acid |
| Unit | Wt-% | Wt-% | Wt-% | Wt-% | Wt-% | mpa.s | MgKOH/g |
| DR-50 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 7-9 | ≤0.5 |
| DR-40 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 9-14 | ≤0.5 |
| DR-30 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 14-20 | ≤0.5 |
| DR-20 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 20-30 | ≤0.5 |
| DR-20SP | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 25-40 | ≤0.5 |
| DR-16 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 30-55 | ≤0.5 |
| DR-17 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 35-60 | ≤0.5 |
| DR-18 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 80-110 | ≤0.5 |
| DR-13 | ≤2.0 | ≥98.0 | 76-85 | ≤3.0 | 12-17 | 160-260 | ≤0.5 |
Characteristics:
1.PVB resin that is suitable for flexo and gravure printing, has good adhesion to polyolefins, metal, cellulose acetate, polyester, cellophane paper, polyamide and polystyrene film;
2. PVB resin as the foundation of the printing ink shows a low solvent resistance, good liquidity, good waterproof, which could be independently used as the basic resin, and could be used together with alcohol soluble nitrocellulose, acetone condensation resin, alkyd resin, maleic resin and other natural polymer;
3.Suggested quantity added to: 18-30% for DR-40; 15-20% for DR-30; 10-15% for DR-20; 5-15% for DR-16/DR-17/DR-18;
4.Dissolve under normal temperature (25 ℃ ), the dissolution time is 30 minutes min., this characteristic has greatly increased the ink’s solubility;
5.PVB resin has good wettability and pigment dispersion;
6.Non-toxic, tasteless, odorless, no aromatic element, no heavy metal, no plasticizer, is the first choice of resin for environment friendly printing ink.
Storage:
Under a dry and cool condition, the product can be stored for at least 12 months if sealed in original packaging.
